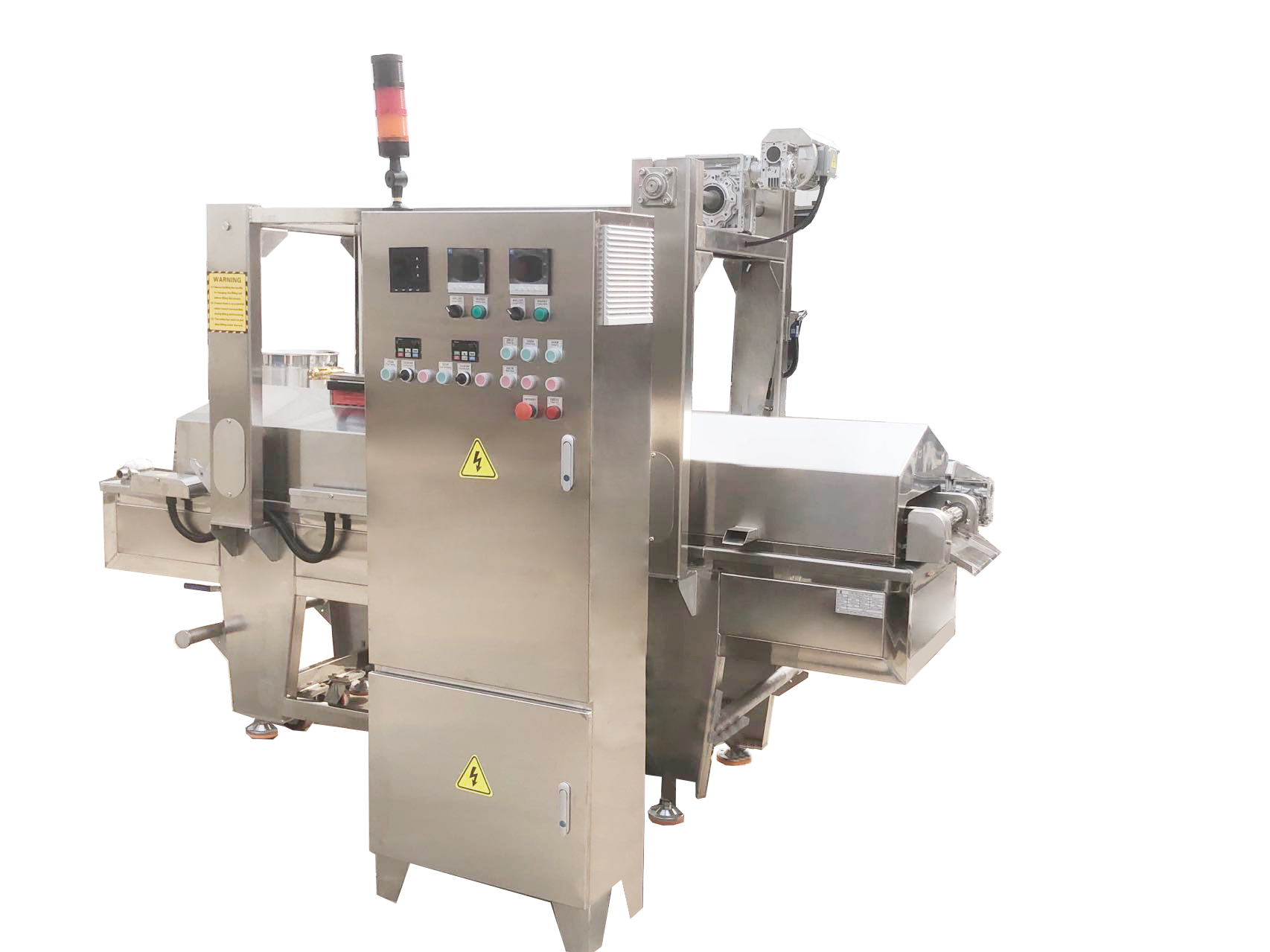

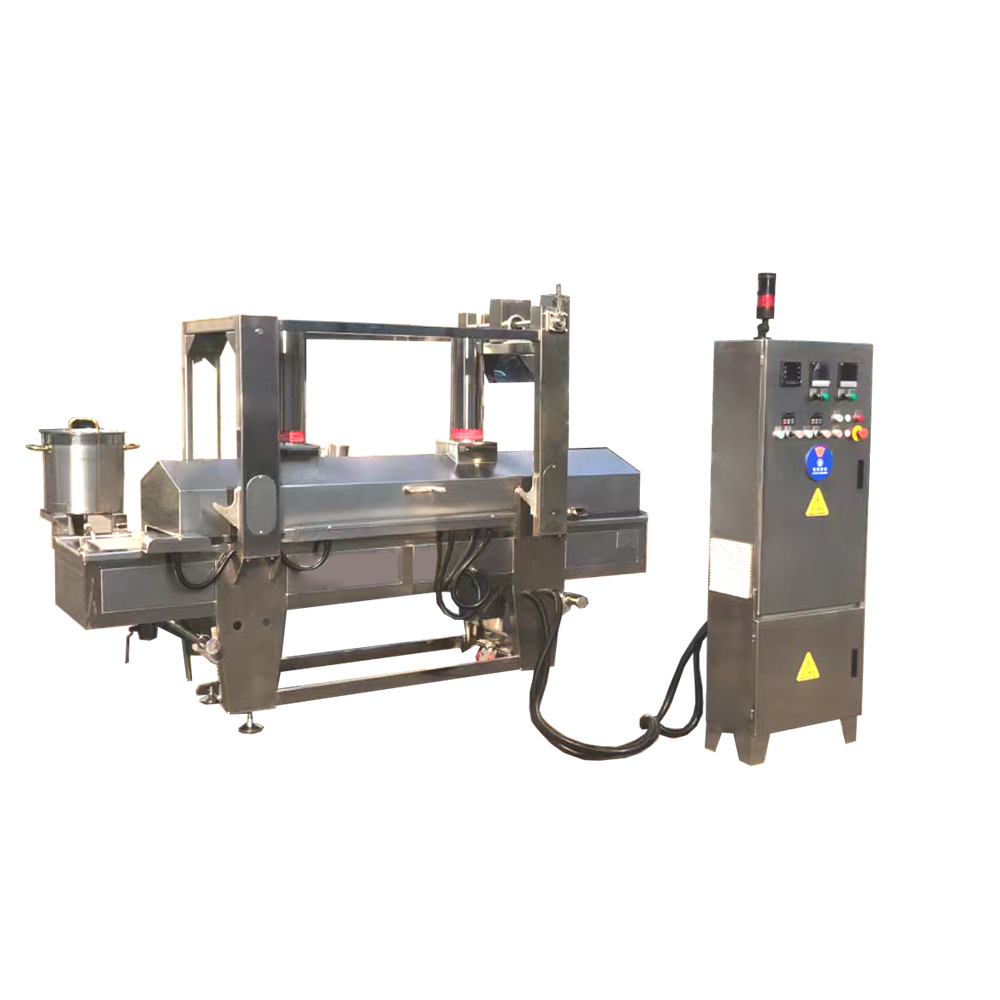

This continuous fryer is fully fabricated from food-grade 304 stainless steel, professionally developed for mass production of samosa，chicken nuggets，burger patties，chicken tender，beef tender,belyash,cheburek,empadas,spanish churros.

Core Machine Features

1. Both frying time and temperature are freely adjustable to meet different frying standards of various products.

2. Comes with a dedicated vacuum oil filter system to purify cooking oil and extend oil service life.

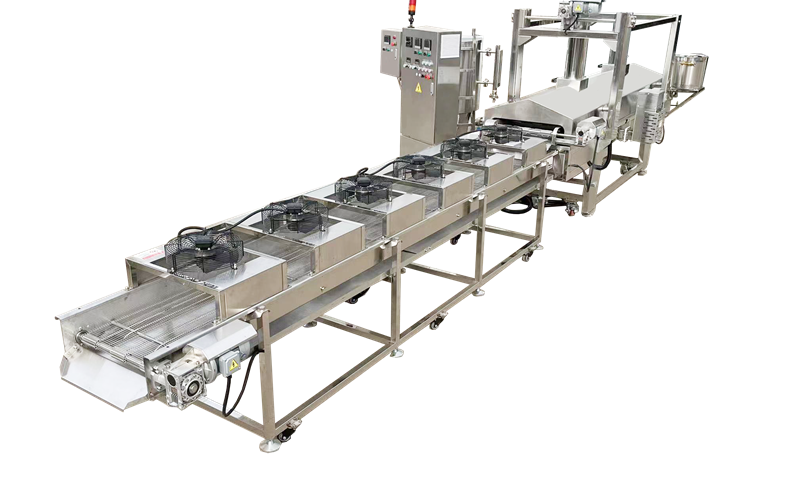

3. Supporting optional matched cooling conveyor, which can be installed to quickly cool finished fried food right after frying.

4. Automatic mesh belt continuous conveying design realizes one-pass steady frying for large-volume production.

5. Complete model spectrum covers small workshop to heavy industrial production lines for flexible layout matching.




   Complete Model Specification Table

   Model No.	Overall Dimension (LWH mm)	Frying Tank Size (LWH mm)	Oil Volume	Heating Power	Production Capacity
   RFCF—2800/300	2800×1200×1900	2200×300×60	175L	30Kw	100–150kg/h
   RFCF-3500/500	3500×1300×1990	2900×500×60	310L	60Kw	120–250kg/h
   RFCF-4000/500	4000×1300×2000	3400×500×60	400L	80Kw	200–280kg/h
   RFCF-4000/600	4000×1400×2000	3400×600×60	430L	80Kw	220–290kg/h
   RFCF-4500/500	4500×1300×2000	3900×500×60	440L	90Kw	250–300kg/h
   RFCF-4500/600	4500×1400×2000	3900×600×60	520L	90Kw	260–320kg/h
   RFCF-5000/600	5000×1500×2100	4400×600×80	770L	100–120Kw	350–420kg/h
   RFCF-6000/600	6000×1500×2100	5400×600×80	1100L	150Kw	450–550kg/h
   RFCF-6000/800	6000×1600×2100	5400×800×80	1200L	150Kw	460–580kg/h
   RFCF-6500/600	6500×1500×2100	5900×600×80	1300L	180Kw	500–600kg/h
   RFCF-6500/800	6500×1700×2100	5900×800×80	1400L	180Kw	520–630kg/h
   RFCF-7000/600	7000×1500×2100	6400×600×80	1500L	200Kw	550–650kg/h
   RFCF-7000/800	7000×1700×2100	6400×800×80	1600L	200Kw	580–680kg/h
   RFCF-7000/1000	7000×1900×2100	6400×1000×80	1800L	200Kw	600–700kg/h
   RFCF-7500/800	7500×1700×2100	6900×800×80	1900L	220Kw	700–800kg/h
   RFCF-7500/1000	7500×1900×2100	6900×1000×80	2000L	220Kw	750–850kg/h
   RFCF-8000/800	8000×1700×2100	7400×800×80	2100L	260Kw	800–850kg/h
   RFCF-8000/1000	8000×1900×2100	7400×1000×80	2200L	260Kw	850–900kg/h
   RFCF-9000/800	9000×1700×2100	8400×800×80	2400L	280Kw	900–1000kg/h
   RFCF-9000/1000	9000×1900×2100	8400×1000×80	2500L	280Kw	950–1200kg/h

FAQ for  Continuous Samosa Fryer

1. What material is the fryer made of?

The whole fryer adopts food-grade 304 stainless steel. It is rust-proof, easy to clean and meets food sanitation standards.

2. Can I adjust frying temperature and frying time?

Yes. Both frying temperature and conveying speed (frying time) are fully adjustable to match samosas, tortilla chips and other fried snacks with different frying requirements.

3. What is the function of the vacuum oil filter?

The standard built-in vacuum filter filters residues from hot oil during production. It reduces oil oxidation, extends oil service life and ensures uniform product color.

4. Does the fryer come with a cooling conveyor?

The cooling conveyor is an optional matching accessory. It can be connected after the fryer to rapidly cool fried products for subsequent packaging.

5. What production capacities do you offer?

Our full model range covers hourly output from 100 kg/h up to 1200 kg/h, suitable for small workshops to large industrial production lines.

6. How many models are available for selection?

We have 20 standard models with different lengths, tank widths, oil volumes and heating powers. Custom sizes are also acceptable upon request.

7. What heating method does this fryer use?

All RFCF series fryers adopt electric heating, with heating power ranging from 30Kw to 280Kw according to different models. Also can use gas and diesel heating

8. Is the machine easy to maintain?

The oil tank and mesh belt are easy to be lifted for thorough cleaning. The vacuum filter can be cleaned regularly without stopping the whole production line.

9. Can this fryer work with battering, forming and breading machine?

Absolutely. The fryer, breading and battering machine can form a complete automatic production line for prepared convenience product

10. Do you provide technical support after purchase?

Yes. We supply installation guidance, operation manuals and after-sales technical support. Custom layout design for your factory is also available.
