Overview
Industrial tortilla chip production relies on stable, uniform conveying and seasoning equipment to standardize product texture, flavor consistency and production efficiency. Our multi-layer conveying and seasoning system is specially engineered for tortilla chip manufacturing, available in two core configurations: 3-layer version and 5-layer version, designed to be installed at two critical process nodes: upstream before the frying machine, and downstream after the toasting oven. This dual-position compatibility lets food manufacturers integrate the line seamlessly into existing full-automatic tortilla chip production workflows.
Core Equipment Specifications
Multi-Layer Conveyor Structure (3 / 5 Layers Optional)
With variable frequency drive system. Operators can separately adjust the running speed without interfering with other belts. This independent speed control solves key production pain points: it extends cooling dwell time for hot chips post-toasting, controls pre-frying material distribution density, and avoids stacking, breakage or uneven seasoning of fragile tortilla chips.
Two standard belt widths for customized output: 860 mm wide belt (high-volume large-scale production lines) and 620 mm wide belt (medium/small batch flexible factories).
Standard overall machine length: 6700 mm, with symmetrical layered layout for balanced material flow across all tiers.

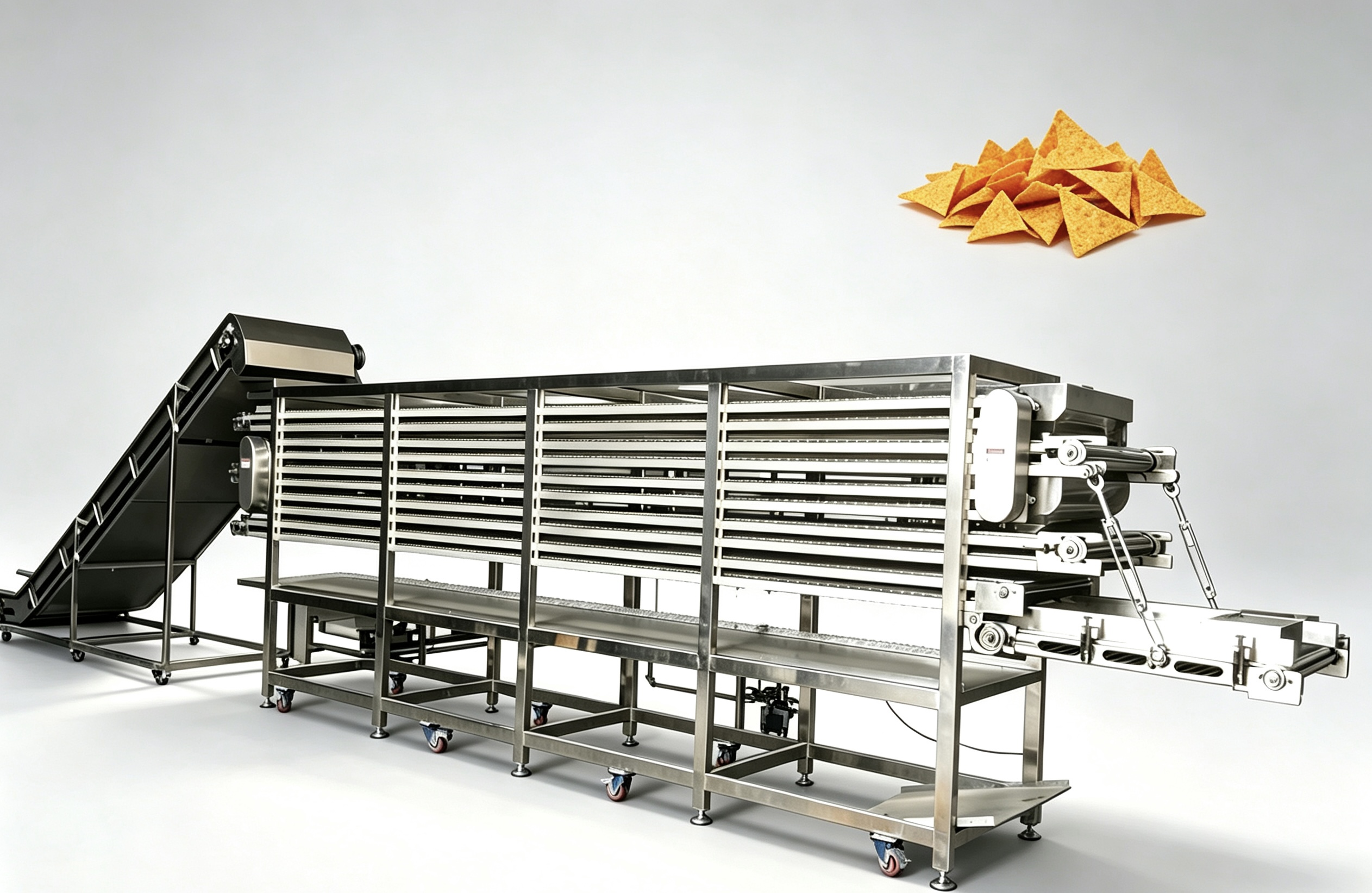

- Front-End Feeding ConveyorA matched inclined feeding elevator conveyor is equipped upstream of the multi-layer main line, as shown in the equipment render. It automatically lifts raw or semi-finished tortilla sheets/chips from the oven and evenly distributes materials onto the first layer of the multi-layer conveyor. The anti-slip belt design prevents slippery dough/chips from sliding back during upward transport, realizing continuous automatic feeding without manual intervention.
- Adjustable Height Discharging SectionThe terminal discharging zone of the multi-layer system supports flexible height adjustment. Manufacturers can fine-tune the outlet elevation to perfectly align with the inlet of the frying machine, seasoning tumbler, packaging conveyor or subsequent processing equipment. Height adjustability eliminates material drop breakage, reduces chip waste, and simplifies line layout modification when production equipment is repositioned or replaced.
Two Main Installation Application Scenarios
1. Installed Before Frying Machine
After cutting and shaping, raw tortilla chips pass through this multi-layer conveyor before entering the fryer. Independent layer speed adjustment controls the material spread thickness and transit time, removing surface excess moisture from raw chips. Pre-dehydration via layered conveying shortens frying duration, reduces oil absorption rate of finished tortilla chips, and improves product crispness while lowering production oil costs.
2. Installed After Toasting OVEN Machine
Hot toasted tortilla chips carry high surface temperature and residual moisture. The 3/5-layer extended conveying line acts as a cooling buffer tunnel. Each layer runs at a customizable speed to extend natural cooling time, evenly dissipate heat across all chip surfaces, and stabilize chip texture before seasoning. Uniform cooling guarantees even adhesion of powder, liquid or mixed seasonings, eliminating inconsistent flavor concentration on finished tortilla chips.
Material & Construction Advantages
The entire machine frame, conveyor belts and seasoning contact components are constructed from food-grade 304 stainless steel, complying with international food safety standards. Detachable belt structures simplify daily cleaning to prevent cross-contamination and residue buildup. Universal moving casters with leveling feet are fitted at the base, supporting flexible equipment relocation and stable horizontal positioning during long-hour continuous operation.
Frequently Asked Questions (FAQ)
Q1: What is the difference between the 3-layer and 5-layer conveying & seasoning system?
A: The 5-layer model provides longer total material transit length within the same 6700 mm overall machine footprint, delivering longer cooling/dehydration time. It is recommended for high-output production lines (860 mm wide belt option preferred). The 3-layer version occupies a smaller floor space, suitable for medium-low output factories and limited workshop layouts, and matches well with the 620 mm narrow belt specification. Both versions retain independent single-layer speed adjustment function.
Q2: Can I switch between 620 mm and 860 mm belt widths after purchasing the machine?
A: Belt width is customized during manufacturing based on your production capacity. The frame, driving rollers and side guards are tailor-made for either 620 mm or 860 mm width. Retrofit replacement of belt width is not supported; confirm your hourly output requirement before ordering to select the matching belt size.
Q3: How wide is the adjustable range of the discharging section height?
A: The discharge outlet supports a vertical adjustment range of 300–800 mm, covering most standard frying machine, seasoning drum and packaging conveyor inlet heights. Our technical team can extend the adjustable range if your production line has special equipment height requirements.
Q4: Is the single-layer speed adjustment accurate enough for fragile tortilla chips?
A: Each layer is equipped with an independent VFD variable frequency motor, with stepless speed regulation from 0.5 m/min to 6 m/min. The low-speed control precision avoids fast belt friction that causes chip cracking, and you can set different dwell times for each layer to achieve staged cooling and material buffering.
Q5: Does the feeding conveyor come as standard with the multi-layer system?
A: Yes, the inclined feeding elevator conveyor is a standard matching accessory for the 3-layer and 5-layer conveying & seasoning line, designed to coordinate speed with the main multi-layer belts. We can adjust the feeding conveyor lifting angle and length according to your upstream cutting/toasting machine layout.
Q6: Can this system work for both pre-frying dehydration and post-toasting cooling?
A: Absolutely. The machine’s independent layer speed control and extended 6700 mm length adapt to both process nodes. When installed before frying, it functions as a moisture removal buffer conveyor; when placed after the toaster, it serves as a cooling and equalizing conveyor prior to seasoning application.
Q7: What is the standard overall length of the machine? Can I customize a longer model?
A: The standard specification length is 6700 mm. Custom extended lengths are available upon request for ultra-high capacity production lines, with customized layer quantity and belt speed control configurations provided by our engineering team.
